Push Pull -

2 Emitter Follower
No voltage but Current Gain

+ve
NPN ( +ve top half of wave) source PUSH current to the load, Vbe
PNP (-ve botton half of wave) PULL the current from the load
-ve

Middle Terminal is the Collector

Flow of Signal on A Push-Pull Amplifier using a NPN and PNP


+ ve ((90Volts)  - Class G amp - switch on when more than +45volts need )
mosfet N-Channel IRFOP9140N (Gate Drain Source)
NPN  C5240
+Ve (+45Volts)
Collector
Base  +0.6volts Bias (Needs +ve wave to turn on)
Emitter
=> 0.22Ohm  => SPEAKER
=> 0.22Ohm
PNP A1962
Emitter
Base -0.6 volts bias (Needs -ve wave to turn on)
Collector
-ve (-45Volts)
Mosfet P-Channel IRFP9150N (Gate Drain Source)
- ve (-90Volts)  - Class G amp - switch on when more than -45volts need )

https://www.youtube.com/watch?v=JokusaT7eok&t=1534s
https://www.youtube.com/watch?v=S7jrirsfkNw&t=20s


How to identify PNP or NPN Transistors

Emitter, Base, Collector

P  (Positive)
N  (Negative)
P  Positive


BC547                        BC157

N  P  N                       P  N  P

you'll have 0.7 ohm reading with NP or PN junction is Good  and no reading if terminal leads change.
Base  +                       Base  -
Emitter  -                    Emitter  +
Collector -                   Collector +

NPN  - Red Led on Base and Black led on Emitter or Collector you will have .6 ohms
     - Black Led on Base and Red led on Emitter or Collector you will have No Reading

PNP  - Black Led on Base and Red led on Emitter or Collector you will have .6 ohms
     - Red Led on Base and Black led on Emitter or Collector you will have Mo Reading



Meter in Diode Mode
Red Led  (Voltage/Ohm)
Black Led  (Common)

meter reads  O.L is Over Limit. eg . So if you are on a 2 V voltage range and try to measure 3 V, it will show OL.











(Note: Arrow defines the emitter and conventional current flow, “in” for a PNP transistor.)

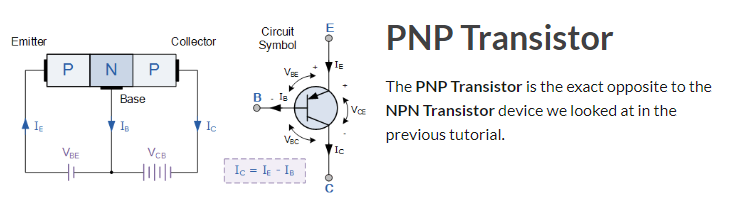

Identifying the PNP Transistor

We saw in the first tutorial of this transistors section, that transistors are basically made up of two Diodes connected together back-to-back.

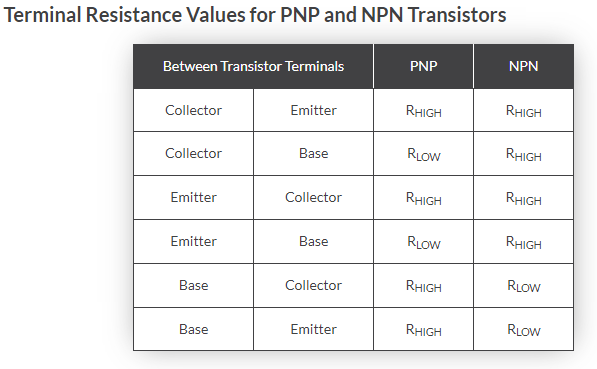

We can use this analogy to determine whether a transistor is of the PNP type or NPN type by testing its Resistance between the three different leads, Emitter, Base and Collector. By testing each pair of transistor leads in both directions with a multimeter will result in six tests in total with the expected resistance values in Ohm’s given below.


1. Emitter-Base  – The Emitter to Base should act like a normal diode and conduct one way only.

2. Collector-Base – Collector-Base junction should act like a normal diode & conduct one way only.

3. Emitter-Collector – The Emitter-Collector should not conduct in either direction.

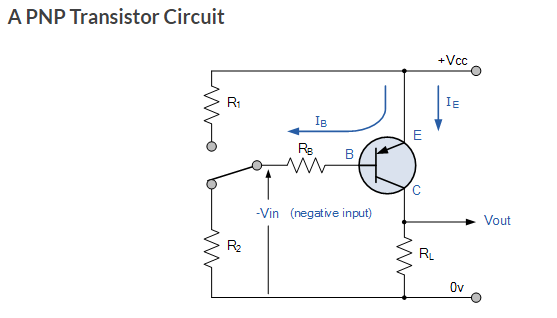

Then we can define a PNP Transistor as being normally “OFF” but a small output current and negative voltage at its Base ( B ) relative to its Emitter ( E ) will turn it “ON” allowing a much large Emitter-Collector current to flow. PNP transistors conduct when Ve is much greater than Vc.

In other words, a Bipolar PNP Transistor will ONLY conduct if both the Base and Collector terminals are negative with respect to the Emitter

In the next tutorial about Bipolar Transistors instead of using the transistor as an amplifying device, we will look at the operation of the transistor in its saturation and cut-off regions when used as a solid-state switch.

Bipolar transistor switches are used in many applications to switch a DC current “ON” or “OFF”, from LED’s which require only a few milliamps of switching current at low DC voltages, or motors and relays which may require higher currents at higher voltages.
